SILICONE RUBBER sleeve WITH GLASSFIBER Silicone fiber glass sleeving

Brand Name : SUNBOW

Model Number : SB-SGS-40

Certification : UL, REACH, ROHS, ISO9001:2008

Place of Origin : Shenzhen China

MOQ : 2000 meters

Price : USD

Payment Terms : Western Union, L/C, T/T

Supply Ability : 9,000,000meters/month

Delivery Time : 5~8 working days

Packaging Details : Sunbow standard packing

Product Name : SILICONE RUBBER sleeve WITH GLASSFIBER Silicone fiber glass sleeving

Material : Silicone resin and fiberglass sleeving

Color : White, others could be customized

Size Range : 0.5~30 mm

Certificates : UL, REACH, ROHS, ISO9001:2008

UL NO. : E333178

Application : AC motor, heater, wire hardness, bus bar, component leads, assemblies of electric components etc.

Working Temperature : 200 C

Contact Now

SILICONE RUBBER sleeve WITH GLASSFIBER Silicone fiber glass sleeving

Working temperature:200°C

The material content of the SB-SGS-40 is Non-Alkali Fiberglass Braided then coated with silicone resin and treated in high temperature.

SB-SGS-40 sleeving with its good dielectric strength, flexibility and flame retarding properties make it high performance qualities. It can be widely used in insulated or partially insulated conductors, bus bars, component leads, or assemblies of electrical components etc.

SPECIFICATION

ITEM	PERFORMANCE)		NOTE
DIELECTRIC BREAKDOWN VOLTAGE KV AC	MINIMUM AVERAGE	≥4.0	BEFORE AGED
	MINIMUM SINGLE POINT	≥3.0	BEFORE AGED
	MINIMUM AVERAGE	≥3.0	6 HRS* 245±5°C 245±5°C 6HRS AGING
	MINIMUM SINGLE POINT	≥2.0	6 HRS* 245±5°C 245±5°C 6HRS AGING
THERMAL ENDURANCE	NO INDICATION OF CRACK	OK	6 HRS* 245±5°C 245±5°C 6HRS AGING
FIRE RESISTANCE	VW-1	OK	UL 1441

DIMENSION

INSIDE DIAMETER		WALL THICKNESS MINIMUM (mm)	STANDARD PACKAGE m/roll
NOMINAL(mm)	TOLERANCE(mm)	WALL THICKNESS MINIMUM (mm)	STANDARD PACKAGE m/roll
φ0.5	+0.2, -0.1	≥0.37	200
φ1.0	+0.2, -0.1	≥0.37	200
φ1.5	+0.2, -0.1	≥0.37	200
φ2.0	+0.2, -0.1	≥0.37	200
φ2.5	+0.3, -0.1	≥0.42	200
φ3.0	+0.3, -0.1	≥0.42	200
φ4.0	+0.3, -0.1	≥0.42	200
φ4.5	+0.3, -0.1	≥0.51	100
φ5.0	+0.3, -0.1	≥0.51	100
φ6.0	+0.3, -0.1	≥0.51	100
φ7.0	+0.3, -0.1	≥0.56	100
φ8.0	+0.3, -0.1	≥0.56	100
φ9.0	+0.3, -0.1	≥0.66	100
φ10.0	+0.3, -0.1	≥0.66	100
φ12.0	+1.0, -1.0	≥0.66	50
φ14.0	+1.0, -1.0	≥0.66	50
φ16.0	+1.0, -1.0	≥0.66	50
φ18.0	+1.0, -1.0	≥0.66	50
φ20.0	+1.0, -1.0	≥0.76	25
φ25.0	+1.0, -1.0	≥0.76	25
φ30.0	+1.0, -1.0	≥0.76	25

PACKAGE: Packing by rolls or cut upon request.

COLOR: Standard color is white, other color available upon request.

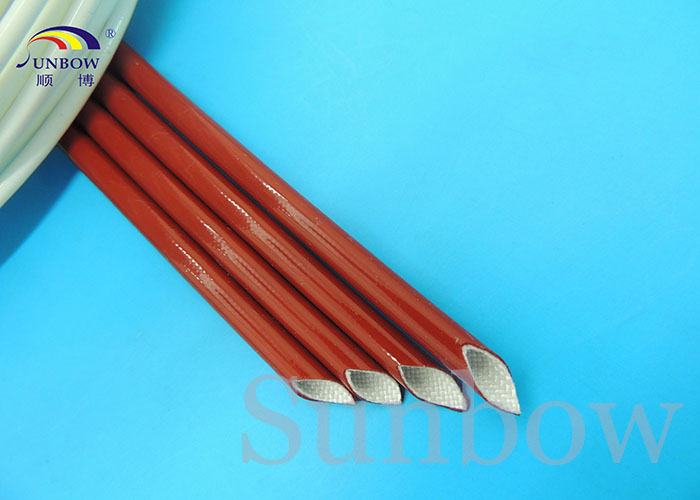

SILICONE RUBBER sleeve WITH GLASSFIBER Silicone fiber glass sleeving

SILICONE RUBBER sleeve WITH GLASSFIBER Silicone fiber glass sleeving
